When it comes to surface grinding for tungsten carbide, machinists face one of the most demanding challenges in precision manufacturing. Consequently, understanding the correct techniques, tooling, and parameters is essential for achieving the tight tolerances and superior surface finishes that tungsten carbide components demand. This comprehensive guide provides professional insights into successfully grinding tungsten carbide while maximizing tool life and production efficiency.
Understanding Tungsten Carbide Properties
Tungsten carbide is an extraordinary material that combines extreme hardness with remarkable wear resistance. Furthermore, its unique characteristics make it ideal for cutting tools, dies, and wear-resistant components across multiple industries.
Hardness and Wear Resistance
Tungsten carbide achieves hardness ratings of HRA 90 or higher, placing it among the hardest materials commercially available for industrial applications. As a result, this exceptional hardness translates to outstanding耐磨性 (wear resistance) in service conditions. However, this same property makes conventional abrasive wheels ineffective, necessitating specialized grinding approaches.
Brittleness and Crack Sensitivity
The high carbon content that gives tungsten carbide its hardness also introduces significant brittleness. Moreover, improper grinding techniques can easily induce micro-cracks or thermal damage. Therefore, careful control of grinding parameters and cooling strategies is absolutely critical.
Thermal Conductivity Challenges
Tungsten carbide conducts heat efficiently, which means thermal energy from grinding must be rapidly dissipated. However, localized heat buildup can still occur, potentially causing thermal damage to the workpiece surface layer. Consequently, effective cooling methods are non-negotiable.
Diamond Wheel Selection for Carbide Grinding
Selecting the appropriate diamond wheel is perhaps the most critical decision in surface grinding for tungsten carbide. Therefore, understanding wheel specifications and their performance implications is essential knowledge for every machinist. For comprehensive CNC grinder selection criteria, visit our detailed resource.
Wheel Grit Size Optimization
The grit size directly influences surface finish quality and material removal rate. Furthermore, coarser grits (80-120 mesh) provide faster stock removal but produce rougher surfaces, while finer grits (180-400 mesh) deliver superior finish but remove material more slowly. Consequently, many professionals use a two-stage approach: rough grinding with coarse grit followed by finish grinding with finer grit.
Bond Type Considerations
Resin-bonded diamond wheels offer excellent surface finish and are widely used for carbide finishing operations. Metal-bonded wheels provide superior edge retention and are preferred for heavy stock removal. Moreover, vitrified bonds offer excellent shape retention and are suitable for high-precision applications. For more details on wheel types, refer to the Society of Manufacturing Engineers guidelines on grinding technology.
Concentration and Grade
Wheel concentration affects diamond content and cutting efficiency. Higher concentrations provide longer wheel life but may compromise wheel sharpness. Furthermore, the grade (hardness of the bond) must match the material being ground—harder grades resist workpiece adhesion but may glaze over on carbide surfaces.
Optimal Grinding Parameters
Achieving consistent, high-quality results in surface grinding for tungsten carbide requires meticulous attention to operational parameters. Consequently, the following guidelines help machinists optimize their processes.
Wheel Speed Recommendations
Standard wheel speeds for carbide grinding range from 5,500 to 6,500 surface feet per minute (SFM). Furthermore, this speed range balances cutting efficiency with thermal management. However, specific applications may require adjustment based on wheel diameter and machine capabilities.
Feed Rates and Depth of Cut
Material removal rates should be conservative to minimize thermal stress. Typically, cross-feed rates of 0.001-0.003 inches per revolution work well for roughing, while finish passes use 0.0005-0.001 inches. Furthermore, depth of cut should rarely exceed 0.001-0.002 inches per pass for rough grinding.
Table Speed Optimization
Table speeds between 40-60 feet per minute are commonly used for carbide surface grinding. Moreover, slower speeds improve surface finish but reduce productivity. Consequently, operators must balance quality requirements against production efficiency based on specific part tolerances.
Cooling and Lubrication Strategies
Effective cooling is paramount when surface grinding for tungsten carbide, as thermal damage represents one of the most common quality issues. Therefore, implementing proper coolant strategies directly impacts both part quality and wheel life. The American Machinist resources provide additional insights on coolant management best practices.
Coolant Concentration and Flow Rate
A properly maintained coolant concentration of 8-12% is essential for optimal performance. Furthermore, high-pressure coolant delivery (40-80 PSI) helps flush swarf from the grinding zone and maintain consistent temperatures. Moreover, flood cooling with nozzles positioned close to the contact zone provides the best thermal management.
Coolant Selection
Water-soluble oils or synthetic coolants specifically formulated for carbide grinding offer superior performance compared to conventional options. Additionally, these coolants prevent the chemical degradation that can occur with certain coolant compositions on carbide surfaces.
Dry Grinding Considerations
While wet grinding is strongly preferred for carbide applications, dry grinding may be necessary in some circumstances. However, if dry grinding is required, special attention must be paid to wheel selection, reduced parameters, and careful thermal monitoring throughout the operation.
Workholding and Fixturing Solutions
Secure and precise workholding is essential for achieving tight tolerances in carbide surface grinding. Furthermore, improper fixturing leads to vibration, positional errors, and potential part damage. Proper precision grinding techniques for various materials can help achieve optimal results.
Magnetic Chuck Solutions
Permanent magnetic chucks provide excellent holding force for ferromagnetic materials but cannot hold non-magnetic carbide workpieces directly. Consequently, steel mounting plates or fixtures become necessary. Moreover, electromagnetic chucks offer adjustable holding force but require careful attention to power supply reliability.
Vacuum Chuck Systems
Vacuum chucks are highly effective for holding flat carbide workpieces, providing excellent stability without magnetic interference. Furthermore, these systems require smooth, non-porous workpiece surfaces and proper sealing to maintain vacuum integrity. Additionally, backup safety measures should always be implemented.
###专用夹具 (Specialized Fixturing)
Complex carbide parts often require custom-designed fixtures for optimal holding. Moreover, these fixtures must provide access for grinding all required surfaces while maintaining rigid workpiece support throughout the operation. Custom fixture design is a specialized skill that experienced machinists develop over years of practice.
Common Problems and Troubleshooting
Understanding typical issues in surface grinding for tungsten carbide enables machinists to quickly identify and resolve problems. Consequently, proactive problem recognition improves quality and reduces scrap rates. You may also want to review our guide on grinding machine setup for comprehensive troubleshooting tips. For additional surface grinder troubleshooting resources, our technical team has compiled detailed procedures.
Surface Cracking and Checks
Thermal stress from excessive heat input is the primary cause of surface cracking in carbide grinding. Furthermore, inadequate cooling, excessive material removal rates, and improper wheel selection all contribute to crack formation. Therefore, reducing parameters and improving cooling typically resolves these issues.
Burn Marks and Thermal Damage
Discoloration indicates thermal damage that compromises the workpiece’s structural integrity. Moreover, burn marks may appear as rainbow-colored patches or dark streaks on the ground surface. As a result, immediate parameter adjustment and coolant system inspection are necessary when burn marks appear.

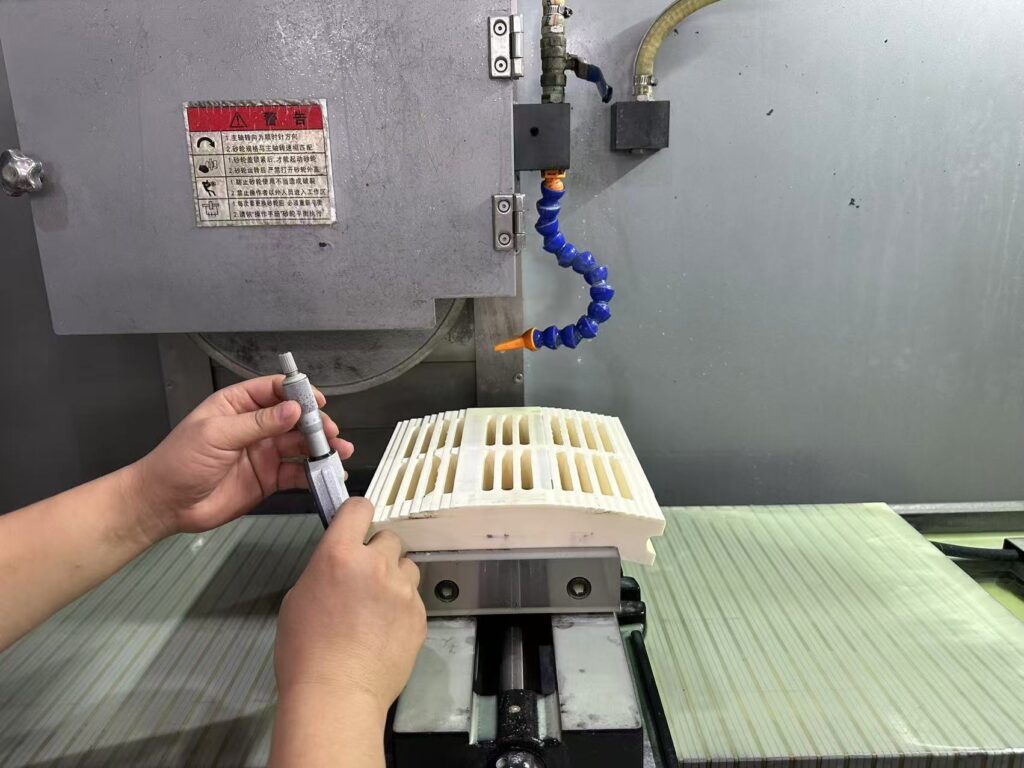

Poor Surface Finish
Surface finish problems often stem from worn wheels, incorrect grit size selection, or vibration issues. Furthermore, excessive wheel wear reduces cutting efficiency and produces poor finishes. Consequently, regular wheel inspection and dressing, combined with parameter optimization, typically resolve finish issues.

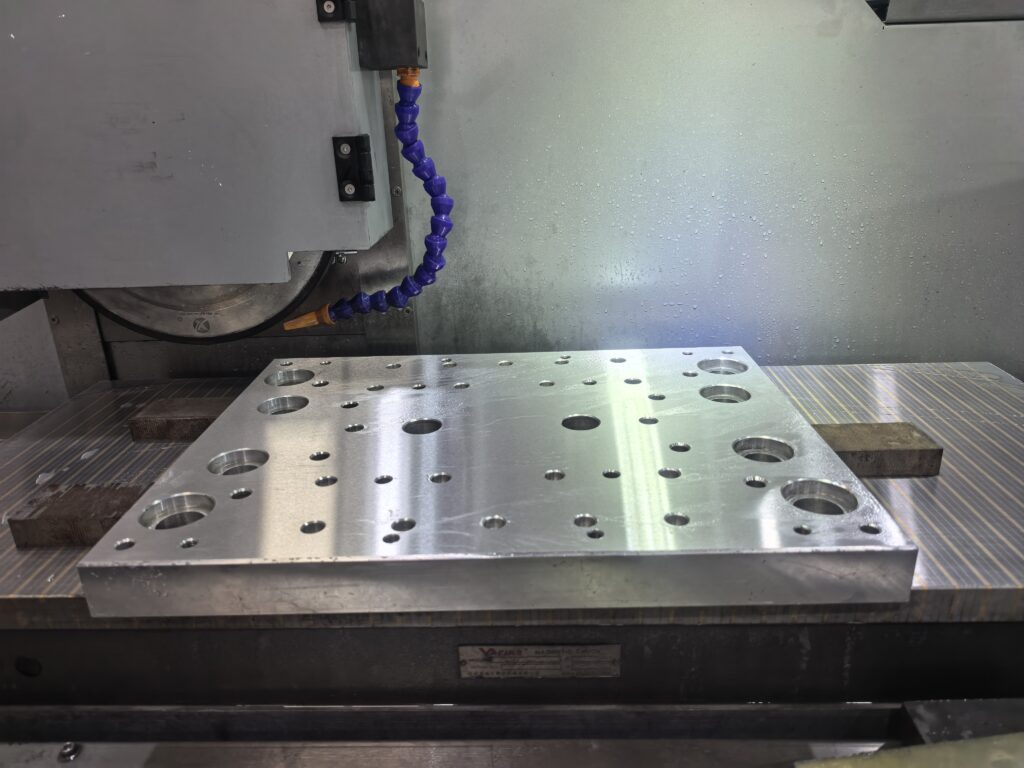

YUTON CNC Grinders for Precision Carbide Grinding
For manufacturers seeking professional-grade equipment for surface grinding for tungsten carbide, YUTON offers exceptional solutions.广东宇同精密机械有限公司 has established itself as a leading provider of precision grinding equipment trusted by workshops worldwide. As a surface grinder manufacturer with proven expertise, YUTON delivers reliability and precision.
Advanced CNC Form Grinders
YUTON’s CNC forming grinders deliver outstanding precision for carbide component manufacturing. With 2025 sales reaching 3,100 units, YUTON has earned recognition as a top-three manufacturer nationally. Furthermore, their 150-person team operates from 15,000 square meters of manufacturing space across seven production facilities in Dongguan, ensuring consistent quality and reliable delivery schedules.
Quality Assurance and Certifications
Every YUTON machine incorporates Japanese, Taiwanese, and American core components, ensuring long-term reliability and precision maintenance. Moreover, all equipment undergoes rigorous testing under ISO 9001 quality management standards and carries CE certification, providing confidence in manufacturing capability and workplace safety compliance.
Precision Performance Specifications
YUTON grinders achieve exceptional accuracy levels suitable for demanding carbide applications. Furthermore, the robust machine construction minimizes vibration during operation, contributing to superior surface finishes on hardened materials. Consequently, these machines represent an excellent investment for shops specializing in tungsten carbide precision grinding.
Applications and Industry Uses
Surface grinding for tungsten carbide serves critical functions across numerous manufacturing sectors. Therefore, understanding common applications helps machinists appreciate the importance of proper technique. The European Committee for Standardization provides relevant industry standards for precision manufacturing. Additionally, AMT Online offers valuable resources for manufacturing professionals.
Cutting Tool Manufacturing
Carbide cutting tools—end mills, drills, inserts, and reamers—all require precision grinding for their functional surfaces. Moreover, the geometric complexity of modern cutting tool designs demands both manual skill and CNC capabilities.
Die and Mold Components
Carbide wear components in dies and molds benefit from precision ground surfaces that maximize tool life and performance. Furthermore, these applications often involve complex geometries requiring specialized equipment and techniques.
Wear-Resistant Components
Industrial equipment requiring wear-resistant surfaces—pump components, valve seats, and mechanical seals—frequently utilize carbide elements. Moreover, these applications demand consistent surface quality for optimal performance.
Maintenance Best Practices
Proper machine maintenance ensures consistent quality in surface grinding for tungsten carbide operations. Furthermore, regular maintenance extends equipment life and reduces unexpected downtime. Check out our grinding machine maintenance guide for detailed procedures.
Daily Maintenance Routines
Wheel condition inspection, coolant level verification, and hydraulic system checks should be performed daily. Moreover, machine warm-up procedures help stabilize thermal conditions before production running begins.
Weekly and Monthly Procedures
Wheel dressing frequency, lubrication system maintenance, and accuracy verification comprise weekly maintenance priorities. Additionally, monthly procedures should include more comprehensive inspection of all machine systems and components.
Long-Term Care Strategies
Annual professional calibration and thorough machine inspection help maintain peak accuracy over extended periods. Furthermore, maintaining detailed maintenance records enables predictive maintenance and identifies recurring issues.
FAQ: Surface Grinding for Tungsten Carbide
What wheel type is best for grinding tungsten carbide?
Diamond wheels are the industry standard for surface grinding for tungsten carbide. Metal-bonded or resin-bonded diamond wheels with 120-180 grit size offer the best balance between material removal rate and surface finish quality for most carbide grinding applications.
How do I prevent thermal damage when grinding carbide?
Prevent thermal damage by maintaining proper coolant flow (flood cooling at 40-80 PSI), using conservative material removal rates (0.001″ maximum depth per pass), and avoiding glazing of the grinding wheel. Furthermore, use wheel dressings regularly and monitor for discoloration indicating heat buildup.
What causes cracking in carbide workpieces during grinding?
Cracking in carbide typically results from thermal shock, excessive material removal rates, inadequate cooling, or improper wheel selection. Moreover, pre-existing stress from previous manufacturing operations can also contribute to crack formation. Reduce parameters and improve cooling to resolve cracking issues.
Can I use regular aluminum oxide wheels on tungsten carbide?
No, aluminum oxide wheels are completely ineffective for grinding tungsten carbide due to carbide’s extreme hardness. Diamond or CBN (cubic boron nitride) wheels are required for efficient material removal. Attempting to grind carbide with conventional wheels will result in rapid wheel wear and poor quality.
What coolant is recommended for carbide grinding?
Water-soluble oils or synthetic coolants specifically formulated for carbide grinding provide optimal performance. Maintain concentration at 8-12% and ensure high-pressure delivery to the grinding zone. Furthermore, avoid coolants that may cause chemical reactions with carbide surfaces.
Conclusion
Successfully mastering surface grinding for tungsten carbide requires comprehensive understanding of material properties, proper tooling selection, optimized parameters, and effective cooling strategies. Furthermore, investing in quality equipment like YUTON CNC grinders—featuring Japanese, Taiwanese, and American core components with ISO 9001 and CE certification—provides the foundation for consistent, high-quality carbide grinding operations. Consequently, machinists who apply these principles and techniques will achieve superior results while maximizing productivity and minimizing waste. Whether you are producing cutting tools, dies, or wear-resistant components, the techniques outlined in this guide will help you achieve precision grinding excellence with tungsten carbide materials.
