YT-618G High Precision Manual Surface Grinder

  • High precision manual surface grinder with micron-level accuracy
  • Smooth hand operation with Japanese steel cable transmission
  • Meehanite cast iron structure with reinforced base and column
  • Taiwan-imported spindle ensures excellent surface finish and flatness
  • Automatic lubrication system reduces wear and improves lifespan
  • Ideal manual surface grinder for precision grinding applications
Request a Quote

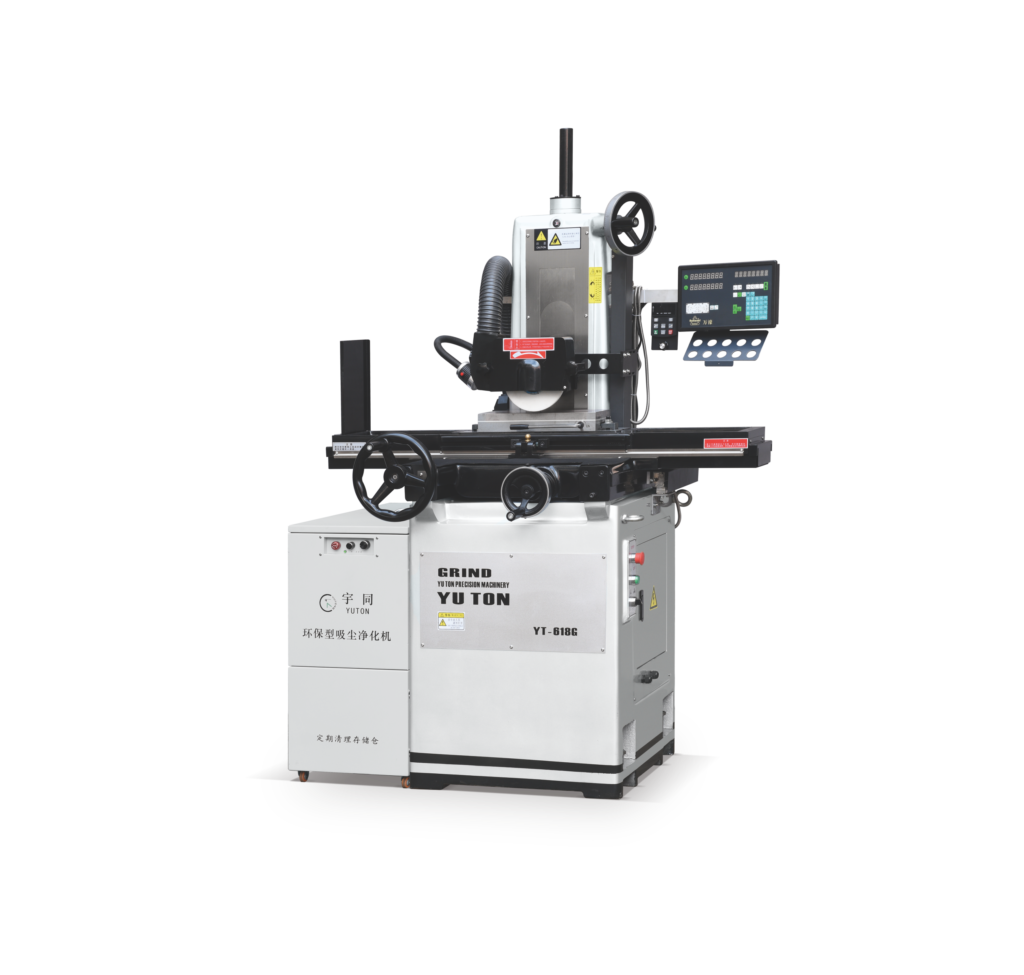

YUTON YT-618G high-precision manual surface grinder on white background

Technical Parameters Summary

YUTON YT-618G high-precision manual surface grinder on white background
YT-618G High Precision Manual Surface Grinder

Specification Item Unit YT-618G
Working Capacity Max. Grinding Length mm 460
Max. Grinding Width mm 160
Distance from Spindle to Table Surface mm 380-400
Standard Magnetic Chuck Size mm 150*400
Table Size mm 150*450
Table Longitudinal Travel Max. Longitudinal Stroke mm 485
Max. Cross Stroke mm 180
Table T-slot / 17*1
Cross Structure Cross Handwheel Feed mm/min 0.02 (1 scale) / 5 (1 revolution)
Vertical Structure Vertical Handwheel Feed mm/min 0.02 (1 scale) / 1 (1 revolution)
Spindle Spindle Speed R.P.M 2850/3600
Spindle Motor Hp 1.5
Grinding Wheel Size (D*W*H) mm 180*16*32 (7*2/3*1-1/4′)
Motor Water Flushing Motor kw 0.4
Dust Collection Motor kw 0.37
Dimensions / Weight Machine Height mm 1900
Footprint mm 1300×1100
Net Weight (Approx.) kg 890

YT-618G Surface Grinder Overview

  • The YT-618G is a high precision manual surface grinder engineered for precision machining applications that demand superior accuracy, stability, and smooth operation. As a flagship model, it is widely used in tool rooms, mold manufacturing, and high-precision component processing.
  • This manual surface grinder features a Japanese-imported steel cable drive system, ensuring exceptionally smooth hand movement, light operation, and enhanced control during grinding. Manufactured to micron-level precision standards, it fully meets the requirements of high precision manual surface grinding.
  • The machine adopts a high-quality Meehanite cast iron structure, with a widened and reinforced base and column design, providing excellent rigidity and long-term dimensional stability without deformation.
  • Key components such as the spindle, motor, and lead screw are imported from Taiwan, ensuring low spindle runout and delivering outstanding surface finish and flatness.
  • In addition, the automatic lubrication system continuously supplies oil to guideways and screws when the spindle is running, significantly reducing wear and extending service life. The oil sight glass allows operators to monitor lubrication conditions in real time.
  • The YT-618G high precision manual surface grinder is an ideal choice for manufacturers seeking precision, durability, and efficient manual grinding performance.

Inside Our Manufacturing Facility

Take a closer look at our advanced production lines, precision machining processes, and strict quality control system. Every machine is built with accuracy, stability, and performance in mind.

👉 Get a Quote

Factory Direct Sales

Yutong Manufacturer Direct Supply: CNC Grinding Machines—Better Pricing, Faster Response.
In-house production with strict QC. Stable performance. Reliable delivery.
OEM/ODM supported. Export-ready packing. Get a quote within 24 hours.

Delivery Site

YUTON 4080 PLC surface grinder fully commissioned at customer factory

FAQ

Q: Do you support custom grinding machines?

A: Yes, we provide customized solutions based on your specific requirements, including size, configuration, and application needs.

A: We support flexible order quantities. One unit is acceptable for trial orders.

A: Standard models usually take 15–30 days. Custom machines may require additional time depending on specifications.

A: Our machines can achieve high precision up to ±0.002 mm, ensuring stable and accurate performance.

A: We follow strict quality control processes, including raw material inspection, precision machining, assembly, and final testing.

A: We export to Southeast Asia, Russia, Ukraine, Pakistan, and other international markets.

A: Yes, we offer technical support, operation guidance, and remote assistance to ensure smooth operation.

A: You can contact us with your requirements, and our team will provide a detailed quotation within 24 hours.
