YT-60160MS Large Automatic Surface Grinder

  • Extra-large automatic surface grinder with 600×1600mm magnetic chuck
  • Heavy-duty hydraulic X-axis system for stable high-speed grinding
  • ±0.001–0.005mm precision with high rigidity structure
  • Taiwan spindle with NSK P4 bearings for long service life
  • Ideal for large mold base, steel plates, and industrial machining
Request a Quote

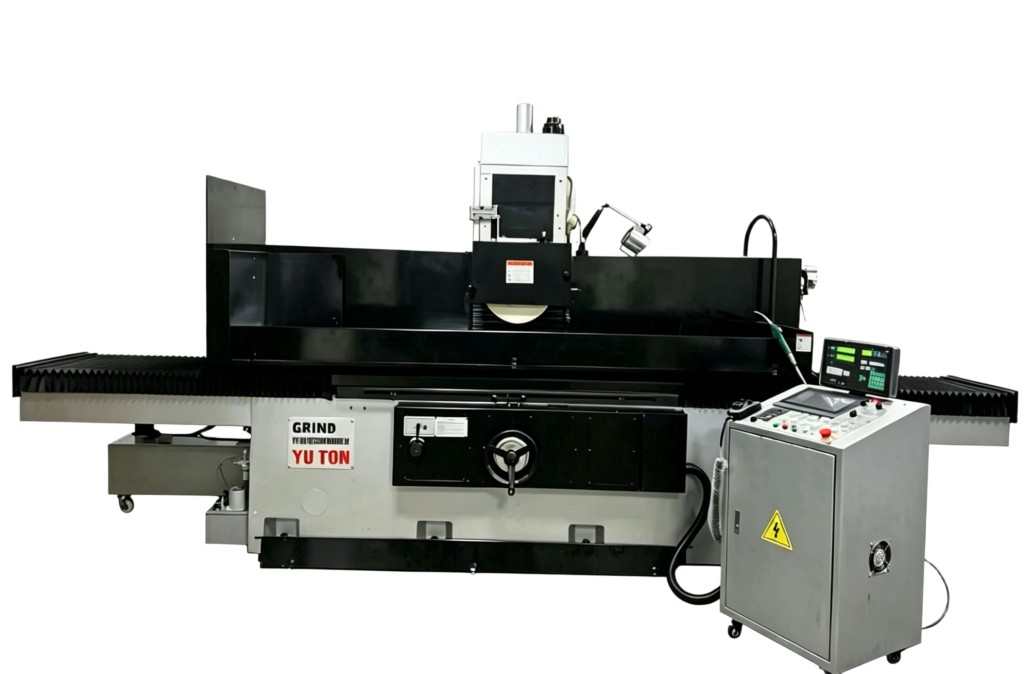

Large NC controlled surface grinder for flat metal parts processing

Technical Parameters Summary

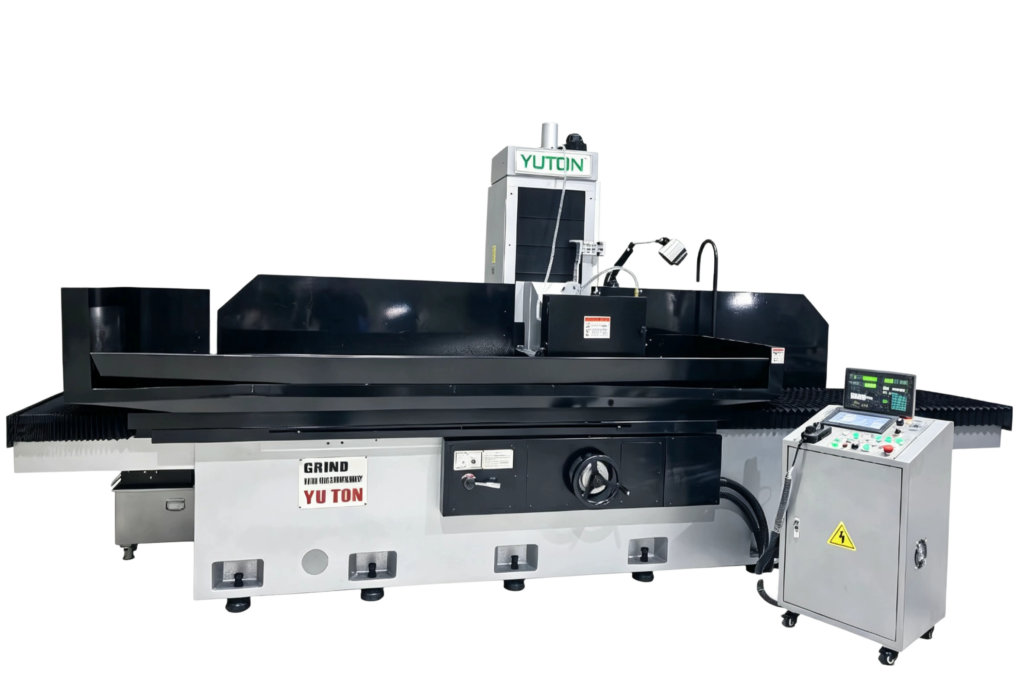

Heavy-duty industrial horizontal spindle surface grinder with automatic grinding control
YT-60160MS Large Automatic Surface Grinder

Specification Item Unit YT-60120MS YT-60160MS
Capacity Table Working Area mm 1200×600 1600×600
Max. Longitudinal (Left/Right) Travel mm 1140 1750
Max. Cross (Front/Back) Travel mm 650
Max. Distance from Spindle Center to Table mm 600
Max. Table Load Capacity KG 1500
Table & Cross Feed Table T-slot mm×N 16×3
Table Speed m/min 7-25
Table Guideway / One V & One Flat
Cross (Front/Back) Handwheel Feed (1 Scale) mm 0.02
Cross (Front/Back) Handwheel Feed (1 Revolution) mm 5
Cross (Front/Back) Automatic Feed mm 0.5~12
Cross (Front/Back) Rapid Traverse (50HZ / 60HZ) mm 1250 / 1500
NC Controlled Axis unit Z-axis Servo
Grinding Wheel Grinding Wheel Size mm Φ400*(20~50)*127
Spindle Speed (50HZ / 60HZ) R.P.M 1450 / 1740
Vertical Movement Vertical Handwheel Feed (1 Scale) mm 0.002
Vertical Handwheel Feed (1 Revolution) mm 0.5
Vertical Automatic Feed (Min.) mm Min. 0.001
Vertical Rapid Traverse mm/min 230
Motor Spindle Motor HXP 15×4
Vertical Drive Motor HXP 1/2×4
Hydraulic Motor HXP 7.5×6
Cross Motor HXP 1/4×6
Water Flushing Motor W 1/8×6
Dimension & Weight Machine Height mm 2700
Footprint mm 5500×2800 5800×2800
Net Weight (Approx.) KG 6500

YT-60160MS Large Automatic Surface Grinder Overview

  • YT-60160MS Large Automatic Surface Grinder is a heavy-duty industrial-grade grinding machine designed for extra-large workpieces and high-precision flat grinding applications.
  • It combines the strengths of automatic surface grinder, hydraulic surface grinding machine, and large-scale precision grinding system, making it ideal for demanding manufacturing environments.
  • Built with a rigid HT300 cast iron structure and advanced motion control system, the machine ensures high stability, strong cutting capability, and long-term precision retention.
  • It is widely used for large mold bases, heavy steel plates, and precision industrial components.

Key Features & Benefits

1. Extra-Large Working Capacity

  • Electromagnetic chuck size: 600 × 1600 mm
  • Designed for oversized and heavy workpieces
  • Ideal for large mold bases and industrial steel plates
  • Stable machining for long and wide components

2. Heavy-Duty Machine Structure

  • Single-column rigid structure design
  • HT300 high-grade cast iron body
  • Stress relieved by annealing and shot blasting
  • High vibration absorption and structural stability
  • Reinforced ribbed frame for maximum rigidity

3. High Precision Grinding Performance

  • Minimum downfeed: 0.001mm
  • Stable micron-level positioning accuracy
  • Hand-scraped guideways (18–25 points/inch)
  • Long-term precision retention under heavy load

4. Hydraulic X-Axis System (Stable & Powerful)

  • Independent hydraulic drive system for table movement
  • Smooth left-right motion for heavy-duty grinding
  • Adjustable speed: 5–25 m/min
  • Ideal for continuous industrial operation

5. Precision Y & Z Axis Feed System

  • Y-axis: ball screw + variable frequency motor
  • Z-axis: precision ball screw + servo system
  • Smooth vertical feed with high repeatability
  • Minimum feed ensures ultra-fine grinding control

6. Premium Taiwan Spindle System

  • Taiwan-made precision spindle
  • NSK P4 grade Japanese bearings
  • High-power motor for strong cutting performance
  • Sealed lubrication design for maintenance-free operation

7. Automatic Lubrication System

  • Taiwan automatic centralized lubrication system
  • Continuous lubrication for guideways and screws
  • Extends machine life and reduces maintenance cost
  • Ensures stable long-term operation

8. High Rigidity Guideway System

  • Precision hand-scraped guide surfaces
  • Imported PTFE (Teflon) low-friction coating
  • Improved wear resistance and smooth motion
  • Ensures consistent machining accuracy

Technical Highlights

  • X-axis: hydraulic heavy-duty drive system
  • Y-axis: precision ball screw feed system
  • Z-axis: servo-controlled vertical grinding system
  • High-rigidity HT300 cast iron base
  • Designed for continuous large-scale production

Applications

  • Large mold & die manufacturing
  • Heavy steel plate processing
  • Automotive and aerospace components
  • Industrial machinery base machining
  • Precision metal fabrication
  • Large-scale tooling production

Inside Our Manufacturing Facility

Take a closer look at our advanced production lines, precision machining processes, and strict quality control system. Every machine is built with accuracy, stability, and performance in mind.

👉 Get a Quote

Factory Direct Sales

Yutong Manufacturer Direct Supply: CNC Grinding Machines—Better Pricing, Faster Response.
In-house production with strict QC. Stable performance. Reliable delivery.
OEM/ODM supported. Export-ready packing. Get a quote within 24 hours.

Delivery Site

YUTON 4080 PLC surface grinder fully commissioned at customer factory

FAQ

Q: Do you support custom grinding machines?

A: Yes, we provide customized solutions based on your specific requirements, including size, configuration, and application needs.

A: We support flexible order quantities. One unit is acceptable for trial orders.

A: Standard models usually take 15–30 days. Custom machines may require additional time depending on specifications.

A: Our machines can achieve high precision up to ±0.002 mm, ensuring stable and accurate performance.

A: We follow strict quality control processes, including raw material inspection, precision machining, assembly, and final testing.

A: We export to Southeast Asia, Russia, Ukraine, Pakistan, and other international markets.

A: Yes, we offer technical support, operation guidance, and remote assistance to ensure smooth operation.

A: You can contact us with your requirements, and our team will provide a detailed quotation within 24 hours.
