YT-618SA ( Water Mill ) High Precision Manual Surface Grinder

  • High precision manual surface grinder for micron-level accuracy
  • Meehanite cast iron structure ensures high rigidity and stability
  • Taiwan-imported spindle, motor, and lead screw for reliable performance
  • Automatic lubrication system reduces wear and extends machine life
  • Compact design with internal electrical cabinet for space saving
  • Ideal manual surface grinder for mold and precision parts machining
Request a Quote

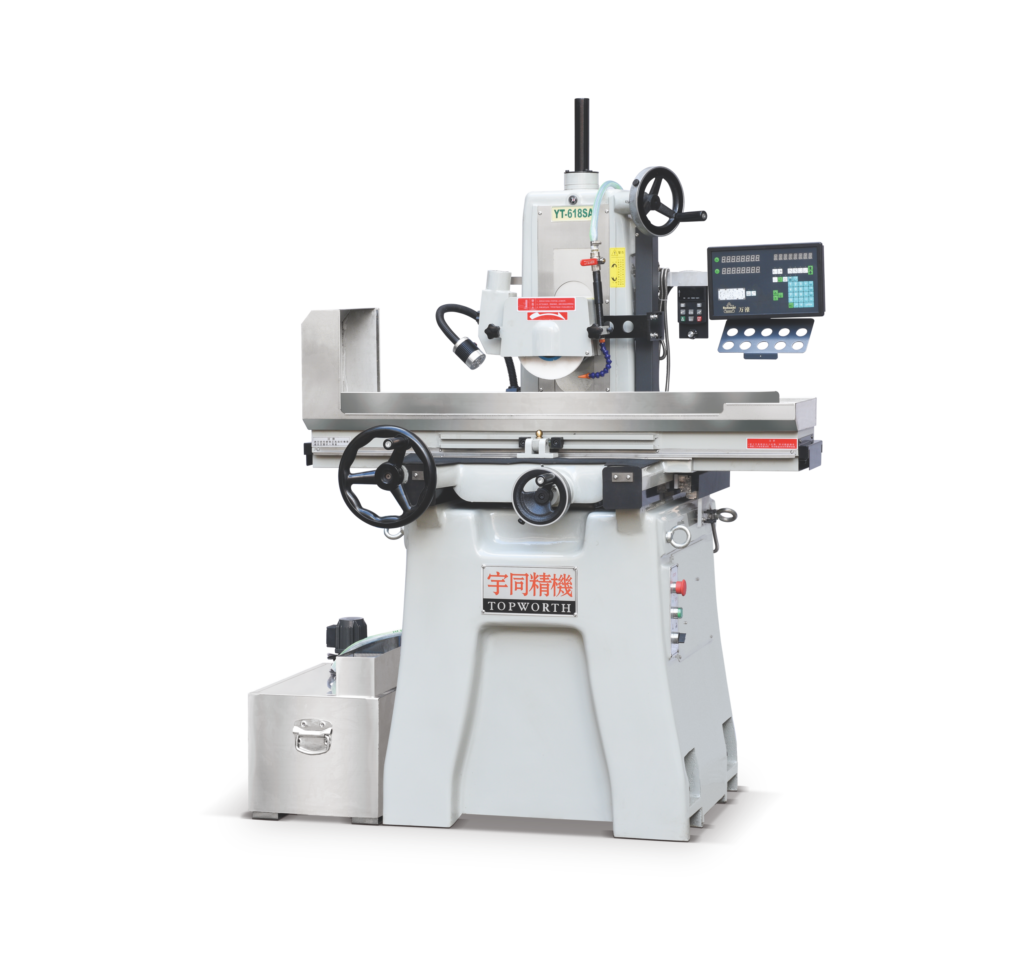

YUTON YT-618SA surface grinding machine with cross-handle table for fine adjustment of workpieces

Technical Parameters Summary

YUTON YT-618SA surface grinding machine with cross-handle table for fine adjustment of workpieces
YT-618SA ( Water Mill ) High Precision Manual Surface Grinder

Specification Item Unit YT-618SA
Working Capacity Max. Grinding Length mm 460
Max. Grinding Width mm 160
Distance from Spindle to Table Surface mm 380-400
Standard Magnetic Chuck Size mm 150*400
Table Size mm 150*450
Table Longitudinal Travel Max. Longitudinal Stroke mm 485
Max. Cross Stroke mm 180
Table T-slot / 17*1
Cross Structure Cross Handwheel Feed mm/min 0.02 (1 scale) / 5 (1 revolution)
Vertical Structure Vertical Handwheel Feed mm/min 0.02 (1 scale) / 1 (1 revolution)
Spindle Spindle Speed R.P.M 2850/3600
Spindle Motor Hp 1.5
Grinding Wheel Size (D*W*H) mm 180*16*32 (7*2/3*1-1/4′)
Motor Water Flushing Motor kw 0.4
Dust Collection Motor kw 0.37
Dimensions / Weight Machine Height mm 1900
Footprint mm 1300×1100
Net Weight (Approx.) kg 820

YT-618SA ( Water Mill ) High Precision Manual Surface Grinder Overview

  • The YT-618SA is a high precision manual surface grinder designed for precision machining applications requiring stability, accuracy, and efficient space utilization. It is widely used in mold manufacturing, hardware processing, and precision component grinding industries.
  • Manufactured to micron-level grinding standards, this manual surface grinder delivers consistent accuracy and excellent surface finish, making it a reliable solution for high precision manual surface grinding tasks.
  • The machine is built with a high-quality Meehanite cast iron structure, providing superior rigidity and long-term stability without deformation, ensuring reliable performance during continuous operation.
  • Key components including the spindle, motor, and lead screw are imported from Taiwan, ensuring low spindle runout and maintaining high precision in flatness and surface quality.
  • An automatic lubrication system is integrated to continuously supply oil to guideways and screws when the spindle is running, effectively reducing wear and extending machine service life. The oil sight glass allows easy monitoring of lubrication status.
  • A compact and space-saving design is adopted, with the electrical cabinet integrated inside the machine body, improving workshop layout efficiency while maintaining easy operation and maintenance.
  • The YT-618SA high precision manual surface grinder is an ideal choice for customers seeking precision, durability, and space-efficient grinding solutions.

Inside Our Manufacturing Facility

Take a closer look at our advanced production lines, precision machining processes, and strict quality control system. Every machine is built with accuracy, stability, and performance in mind.

👉 Get a Quote

Factory Direct Sales

Yutong Manufacturer Direct Supply: CNC Grinding Machines—Better Pricing, Faster Response.
In-house production with strict QC. Stable performance. Reliable delivery.
OEM/ODM supported. Export-ready packing. Get a quote within 24 hours.

Delivery Site

YUTON 4080 PLC surface grinder fully commissioned at customer factory

FAQ

Q: Do you support custom grinding machines?

A: Yes, we provide customized solutions based on your specific requirements, including size, configuration, and application needs.

A: We support flexible order quantities. One unit is acceptable for trial orders.

A: Standard models usually take 15–30 days. Custom machines may require additional time depending on specifications.

A: Our machines can achieve high precision up to ±0.002 mm, ensuring stable and accurate performance.

A: We follow strict quality control processes, including raw material inspection, precision machining, assembly, and final testing.

A: We export to Southeast Asia, Russia, Ukraine, Pakistan, and other international markets.

A: Yes, we offer technical support, operation guidance, and remote assistance to ensure smooth operation.

A: You can contact us with your requirements, and our team will provide a detailed quotation within 24 hours.
