YT-40100CNC Large Surface Grinder

  • Large CNC surface grinder with 400×1000mm table size
  • ±0.002mm precision with full closed-loop control system
  • Automatic grinding, dressing, and multi-stage cycles
  • Ideal for large workpieces, molds, steel, and ceramic materials
  • High-efficiency hydraulic surface grinder for industrial use
Request a Quote
YUTON YT-40100CNC large CNC surface grinder with fully enclosed safety guard and heavy-duty worktable

Technical Parameters Summary

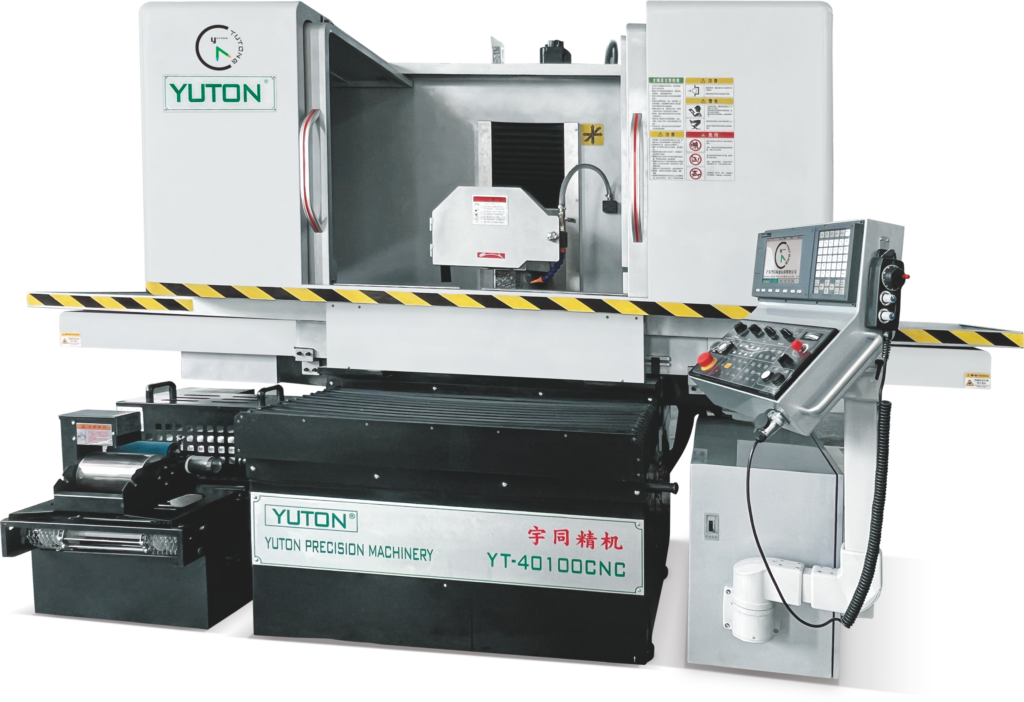

YUTON YT-40100CNC automated surface grinding machine with independent coolant system and swiveling operator station
YT-40100CNC Large Surface Grinder

Specification Item Unit YT-40100CNC
Working Capacity Table Working Area mm 1000×400
Max. Longitudinal Travel mm 1100
Max. Cross Travel mm 420
Max. Distance from Spindle to Table mm 640
Max. Table Load kg 680
Table Longitudinal Travel Min. Longitudinal Feed Increment mm 0.001/0.01
Longitudinal Feed Speed mm/min 0~15000
Cross Structure Min. Cross Feed Increment mm 0.001/0.01
Cross Feed Speed mm/min 0~400
Vertical Structure Min. Vertical Feed Increment mm 0.001/0.01
Vertical Feed Speed mm/min 0~400
Spindle Spindle Motor KW 7.5
Max. Spindle Speed R.P.M 500-2250
Motor Longitudinal Servo Motor kW 1.7
Cross Servo Motor kW 2.4
Vertical Servo Motor kW 3.1
Water Flushing Motor kW 0.18
Dimensions / Weight Machine Height mm 2300
Footprint mm 4800×3000
Net Weight (Approx.) kg 3450

YT-40100CNC Large Surface Grinder Overview

  • YT-40100CNC Large CNC Surface Grinder is a heavy-duty, high-precision grinding solution designed for large workpieces and demanding industrial applications.
  • It integrates the advantages of automatic surface grinder, hydraulic surface grinder, and large CNC grinding machine, delivering superior accuracy, stability, and efficiency.
  • With its parameter-based CNC control system, operators can easily perform complex grinding tasks without programming knowledge, making it highly suitable for both skilled technicians and new operators.
  • This model is especially ideal for large molds, plates, and precision components, where both size and accuracy are critical.

Key Features & Benefits

1. Large Working Capacity (400×1000mm)

  • Electromagnetic chuck size: 400 × 1000 mm
  • Designed for large and heavy workpieces
  • Ideal for mold base, plates, and structural components

2. High Precision & Stability

  • Y/Z-axis accuracy: ±0.002mm
  • X-axis accuracy: ±0.005mm
  • Full closed-loop control eliminates backlash
  • Micron-level positioning for high-end grinding

3. Intelligent CNC System (No Programming Required)

  • Parameter-based HMI interface
  • Easy setup without G-code knowledge
  • Teach-in function for fast positioning
  • Optional G-code support for complex contour grinding

4. Fully Automatic Grinding Process

  • Automatic wheel downfeed with adjustable parameters
  • Programmable grinding depth and total removal
  • Multi-stage grinding: rough, finish, super finish
  • Automatic idle stroke after grinding

5. Advanced Grinding Capabilities

Supports multiple grinding methods:
  • Surface grinding
  • Groove grinding (equal & variable pitch)
  • Profile & form grinding
  • Mirror surface grinding (high finish quality)

6. Automatic Wheel Dressing System

  • Built-in automatic dressing function
  • Dressing compensation ensures consistent accuracy
  • Manual or automatic dressing modes

7. Flexible Table Movement System

  • Automatic longitudinal table movement (left-right)
  • Adjustable stroke length and speed
  • Cross feed: continuous or step-by-step
  • Programmable groove number, spacing, and depth

8. User-Friendly Operation

  • Modular interface for easy learning
  • Electronic handwheel for precise manual control
  • Quick setup via coordinate input or teach mode
  • Reduced setup time with automatic calculation

9. Wide Material Compatibility

Suitable for:
  • Steel
  • Alloy materials
  • Stainless steel
  • Aluminum
  • Ceramics
  • Quartz glass

Technical Highlights

  • 3-axis CNC control system
  • X-axis: table longitudinal movement
  • Y-axis: cross feed
  • Z-axis: vertical grinding head
  • Full closed-loop positioning system
  • High rigidity structure for heavy-duty machining
  • Mirror grinding capability for ultra-fine surface finish

Applications

  • Large mold & die manufacturing
  • Heavy machinery components
  • Automotive and aerospace parts
  • Precision plate processing
  • Tooling and industrial equipment
