YT-4080MS Automatic Surface Grinder

  • Automatic surface grinder for large-size precision grinding applications
  • Hydraulic X-axis system for smooth and stable table movement
  • HT300 cast iron structure with high rigidity and vibration resistance
  • Taiwan spindle with NSK P4 bearings for high precision performance
  • Z-axis servo feed with 0.001mm fine grinding accuracy
  • 400×800mm magnetic chuck for large workpiece processing
Request a Quote

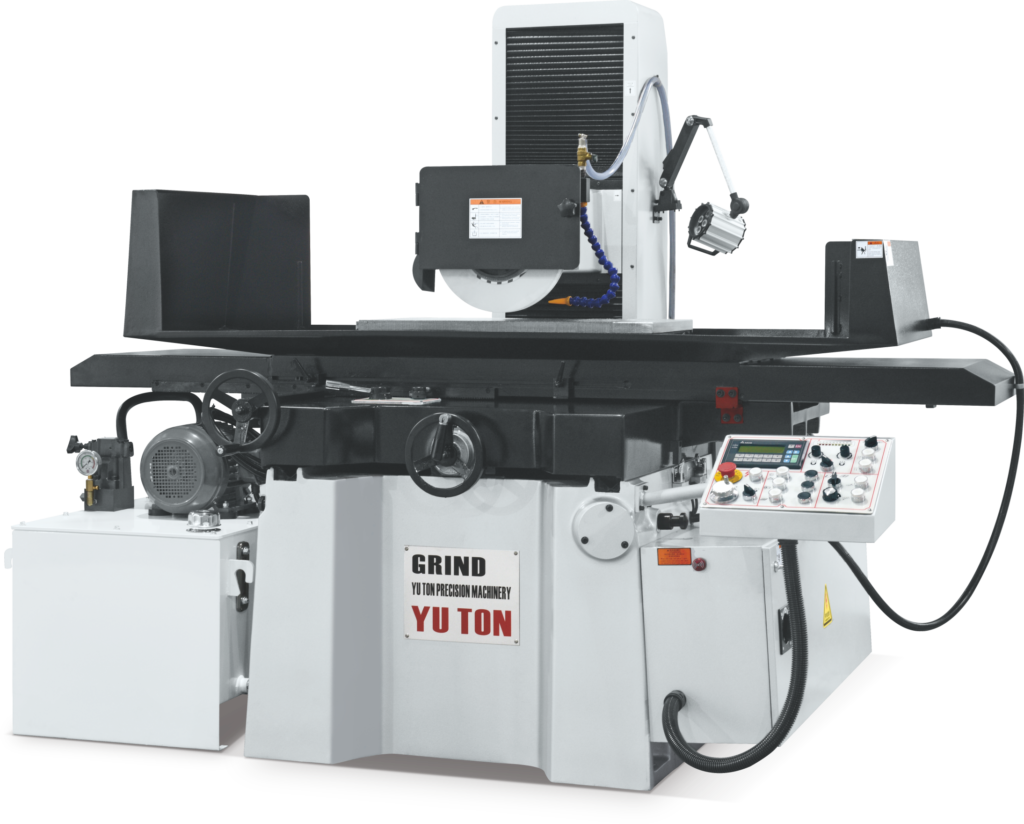

YUTON YT-4080MS hydraulic surface grinder with centralized control panel for consistent precision machining

Technical Parameters Summary

YUTON YT-4080MS hydraulic surface grinder with centralized control panel for consistent precision machining
YT-4080MS Automatic Surface Grinder

Specification Item Unit YT-4080MS
Working Capacity Table Working Area mm 800×400
Max. Longitudinal (Left/Right) Travel mm 860
Max. Cross (Front/Back) Travel mm 480
Max. Distance from Wheel Center to Table (with Raised Option) mm 580-700 (Raised)
Max. Table Load Capacity kgs 700
Table Left/Right Movement Table Speed m/Min 5-25
Cross (Front/Back) Handwheel Feed mm 0.02 (1 scale) / 4 (1 revolution)
Cross (Front/Back) Automatic Feed mm 0.1~8
Cross (Front/Back) Rapid Traverse mm 820 (50HZ) / 980 (60HZ)
NC Controlled Axis unit Z-axis Servo
Spindle Grinding Wheel Size mm φ355×20~40×127
Spindle Speed (50HZ / 60HZ) R.P.M 1450 / 1740
Vertical Structure Vertical Handwheel Feed mm 0.001~0.02 (1 scale) / 0.1~2 (1 revolution)
Motor Spindle Motor HXP 7.5×4
Vertical Drive Motor W 750
Hydraulic Motor HXP 3×6
Cross Motor W 80
Dust Collection Motor HXP /
Water Flushing Motor HXP 1/8×2
Dimensions / Weight Machine Height (with Raised Option) mm 1930-2150 (Raised)
Footprint mm 3330×2500
Net Weight (Approx.) kg 3000

YT-4080MS Automatic Surface Grinder Overview

  • The YT-4080MS is a high-performance automatic surface grinder designed for large workpiece machining and high-precision grinding applications. It is widely used in mold manufacturing, metal processing, and industrial precision machining, making it an ideal solution for users searching for a hydraulic surface grinder or large automatic surface grinding machine.
  • This machine adopts a single-column structure design, where the grinding head moves vertically (Z-axis), the saddle moves front-to-back (Y-axis), and the worktable moves left-to-right (X-axis), ensuring stable and efficient machining performance for heavy-duty applications.
  • The machine body is made of high-quality HT300 cast iron, offering excellent rigidity, strong vibration absorption, and long-term structural stability. After annealing and shot blasting treatment, the casting achieves enhanced hardness and dimensional stability above 180 HB.
  • All guideways and mounting surfaces are hand-scraped with high precision (18–25 points per square inch), improving machine accuracy, mechanical rigidity, and service life. Imported PTFE (Teflon) coating reduces friction and improves wear resistance for smooth and stable motion.
  • The X-axis uses an independent hydraulic drive system, ensuring smooth and stable table movement with adjustable speed from 5–25 m/min. The Y-axis is driven by a precision ball screw with variable frequency motor and synchronous belt transmission, providing stable and controllable feed motion.
  • The Z-axis uses a precision ball screw combined with a servo-driven synchronous belt system, achieving ultra-precise feeding accuracy up to 0.001mm for high-precision grinding operations.
  • The spindle is imported from Taiwan and equipped with Japanese NSK P4 high-precision bearings. The high-power spindle motor ensures strong cutting performance while maintaining long-term accuracy and stability. The sealed lubrication design enables long service life with reduced maintenance requirements.
  • An automatic circulating lubrication system ensures continuous lubrication of all guideways and screw components, reducing wear and extending machine life while lowering maintenance costs.
  • The machine is equipped with a 400×800mm electromagnetic chuck, making it suitable for large and medium-size workpiece grinding applications.
  • The YT-4080MS automatic hydraulic surface grinder is an ideal choice for manufacturers requiring high efficiency, heavy-duty capability, and stable precision grinding performance.

Inside Our Manufacturing Facility

Take a closer look at our advanced production lines, precision machining processes, and strict quality control system. Every machine is built with accuracy, stability, and performance in mind.

👉 Get a Quote

Factory Direct Sales

Yutong Manufacturer Direct Supply: CNC Grinding Machines—Better Pricing, Faster Response.
In-house production with strict QC. Stable performance. Reliable delivery.
OEM/ODM supported. Export-ready packing. Get a quote within 24 hours.

Delivery Site

YUTON 4080 PLC surface grinder fully commissioned at customer factory

FAQ

Q: Do you support custom grinding machines?

A: Yes, we provide customized solutions based on your specific requirements, including size, configuration, and application needs.

A: We support flexible order quantities. One unit is acceptable for trial orders.

A: Standard models usually take 15–30 days. Custom machines may require additional time depending on specifications.

A: Our machines can achieve high precision up to ±0.002 mm, ensuring stable and accurate performance.

A: We follow strict quality control processes, including raw material inspection, precision machining, assembly, and final testing.

A: We export to Southeast Asia, Russia, Ukraine, Pakistan, and other international markets.

A: Yes, we offer technical support, operation guidance, and remote assistance to ensure smooth operation.

A: You can contact us with your requirements, and our team will provide a detailed quotation within 24 hours.
